Wieland 58.510.9055.0 WT 10 PE protective conductor terminal

In stock

SKU: 673727

Price on request

€3.98

€0

Overview

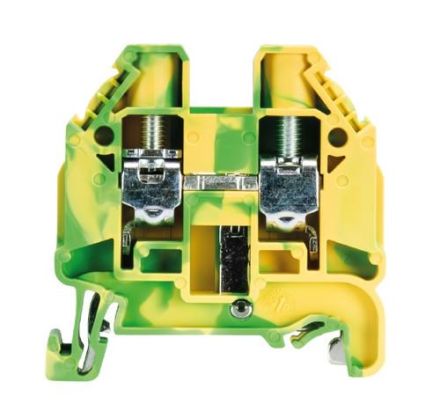

Protective conductor terminal with screw connection for mounting on TS 35, nominal cross-section 10 mm, width 10 mm, color green/yellow

Property	Value
Operating temperature:	-25.0 to 70.0 °C
QS single-wire:	0.5 to 16 mm²
QS multi-wire:	16 mm²
Connectable conductor cross-section fine-stranded without wire end ferrule:	0.5 to 16.0 mm²
QS Wire end ferrule:	0.5 to 10 mm²
PEN function:	no
Connection:	screw connection
Design of electrical connection 2:	screw connection
Levels:	1.00
Terminal points per level:	2.00
Color:	green/yellow
Mounting type:	top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Depth:	48 mm
