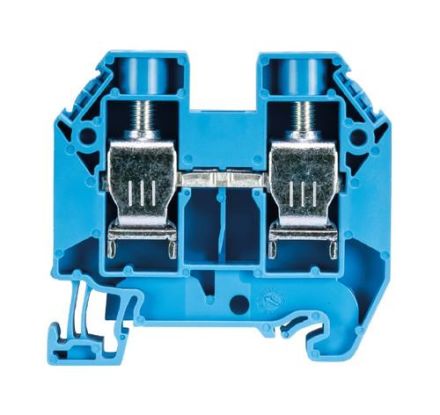

Wieland 58.516.0055.6 WT 16 BL through terminal

Wieland 58.516.0055.6 WT 16 BL through terminal

In stock

SKU: 671805

Price on request

€2.53

€0

Into a basketIn the basketGo

Overview

Feed-through terminal with screw connection for mounting on TS 35, nominal cross-section 16 mm, width 12 mm, color blue

Property	Value
QS single-wire:	1.50 to 16.00 mm²
QS fine-wire:	4.00 to 25.00 mm²
QS multi-wire:	16 to 25 mm²
Color:	blue
QS wire end ferrule:	1.50 to 16.00 mm²
Rated voltage:	1000 V
Levels:	1.00
Terminal points per level:	2.00
Rated current In:	76.00 A
Operating temperature:	-25 to 70 °C
Connection:	Screw connection
Design of electrical connection 2:	Screw connection
Mounting type:	Top hat/G rail TH35/G32
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Depth:	58 mm

Characteristics

HABWT 16 BL

Manufacturer

HAN58.516.0055.6

GTIN4049088164521

Rated voltage1000V

Rated current In76.00 A

Operating temperatur-25 to 70 °C

Color

Mounting typeTop hat/G-rail TH35/G32

Depth58 mm
