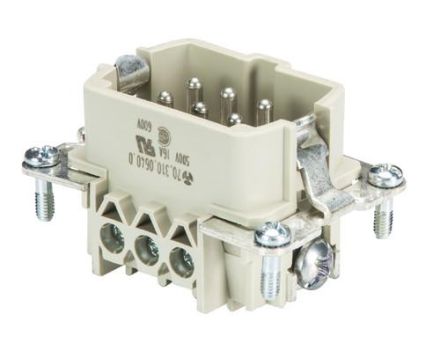

Wieland 70.310.0640.0 BAS STS 6 2.5 50 plug insert

In stock

SKU: 668619

Price on request

€8.28

€0

Overview

revos BASIC 500V 6-pin + PE, plug insert 500V/16A with wire protection, Sn screw connection

Property	Value
Number of poles:	6
Rated current In:	16.00 A
Rated impulse voltage:	6.00 kV
With protective conductor:	yes
Conductor cross-section:	0.50 to 2.50 mm²
Rated voltage:	500.00 V
Ambient temperature:	-40 to 120 °C
Contact type:	Pin
Pollution level:	3
QS single-wire:	0.50 to 2.50 mm²
QS wire end ferrule:	0.50 to 2.50 mm²
QS fine-wire:	0.50 to 2.50 mm²
Material of the contact coating:	Tin
Connection type:	Screw connection
With wire protection:	yes
Flammability class of the insulating material according to UL94:	V0
Operating temperature:	-40 to 120 °C
Width:	34 mm
Height:	32 mm
Depth:	50.5 mm
