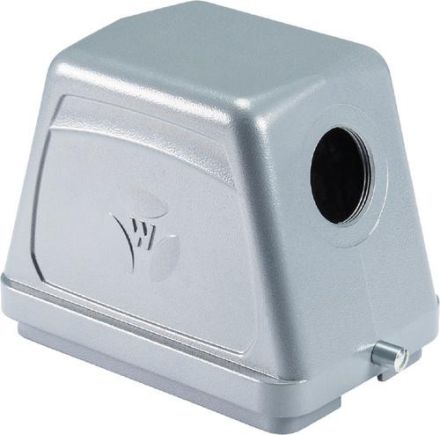

Wieland 70.350.4835.1 BAS GOT GG 48 M32 A1 housing upper part

In stock

SKU: 671962

Price on request

€108.64

€0

Overview

revos BASIC size 48 housing top with M32 threaded hole on the side, one-hand locking,

Property	Value
Width:	90 mm
Height:	107 mm
Protection class (IP), mounted:	other
Operating temperature:	-40.00 to 120.00 °C
Cable outlet:	side
Locking:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulating material according to UL94:	other
Depth:	132 mm
