Catalog

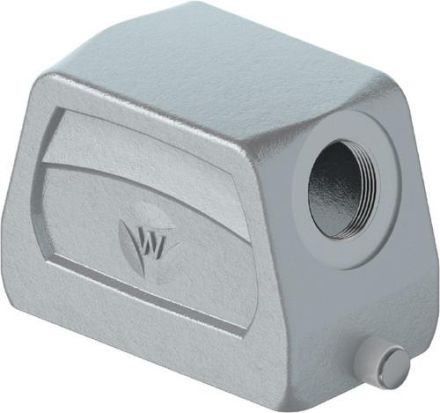

Wieland 71.353.1035.1 BAS GOT GG 10 M25 A1 housing upper part

In stock
SKU: 672154
€15.86
Into a basketIn the basketGo

Overview

revos BASIC size 10 housing top with threaded hole M25 on the side, one-hand locking,

Property Value
Width: 43 mm
Height: 53 mm
Protection class (IP), mounted: other
Operating temperature: -40.00 to 120.00 °C
Cable outlet: side
Locking: Longitudinal bracket
With hinged lid: no
EMC version: no
Corrosion-resistant: yes
With cable gland: no
UV-resistant: yes
Material of the housing: Aluminium
Flammability class of the insulating material according to UL94: other
Depth: 89 mm

Characteristics

HABBAS GOT GG 10 M25 A1
ManufacturerWieland
HAN71.353.1035.1
GTIN4015573651616
Operating temperatur-40.00 to 120.00 °C
Width43 mm
EMC versionNo
Height53 mm
With hinged lidNo
Depth89 mm
UV-resistantYes
Housing materialAluminum
Wieland 71.353.1035.1 BAS GOT GG 10 M25 A1 housing upper part
Wieland 71.353.1035.1 BAS GOT GG 10 M25 A1 housing upper part
€15.86
