Wieland 73.350.4035.0 BAS GOT GA 16HM25 A0 housing upper part

In stock

SKU: 672203

Price on request

€20.86

€0

Overview

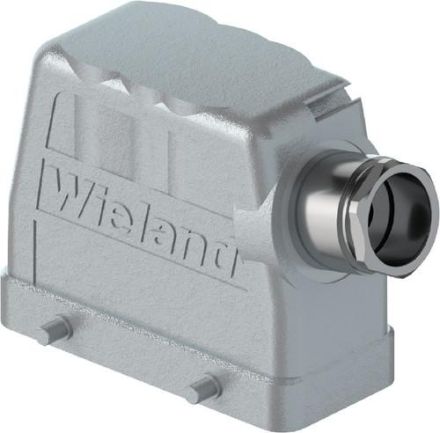

revos BASIC size 16H housing top with M25 screw connection on the side, high design, two-hand locking,

Property	Value
Width:	56 mm
Height:	76 mm
Protection class (IP), mounted:	IP54
Operating temperature:	-40.00 to 120.00 °C
Cable outlet:	side
Locking:	Crossbar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	yes
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulating material according to UL94:	other
Depth:	94 mm
