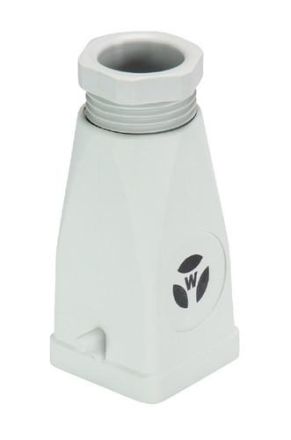

Wieland 76.352.0760.0 MIN GOT GB 7 M20 25 P0 housing upper part

In stock
SKU: 672377
€8.92
Into a basketIn the basketGo

Overview

revos MINI size 3 housing top with M20 screw connection at the top, one-hand locking, plastic housing,

Property Value
Width: 33.5 mm
Height: 57 mm
Protection class (IP), mounted: IP54
Operating temperature: -40.00 to 120.00 °C
Cable outlet: top
Locking: Longitudinal bracket
With hinged lid: no
EMC version: no
Corrosion-resistant: no
With cable gland: yes
UV-resistant: yes
Material of the housing: Plastic
Flammability class of the insulating material according to UL94: V0
Depth: 26.8 mm

Characteristics

HABMIN GOT GB 7 M20 25 P0
ManufacturerWieland
HAN76.352.0760.0
GTIN4015573776500
Operating temperatur-40.00 to 120.00 °C
Width33.5 mm
EMC versionNo
Height57 mm
With hinged lidNo
Depth26.8 mm
UV-resistantYes
Housing materialPlastic
