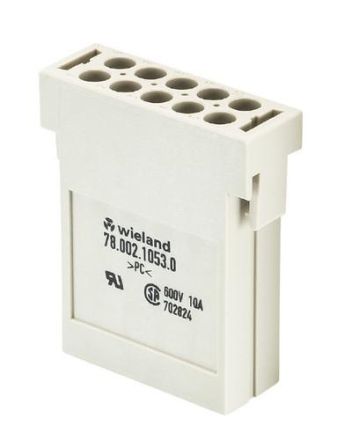

Wieland 78.002.1053.0 FLE BUC 10 25 module insert

In stock

SKU: 673464

Price on request

€2.19

€0

Overview

Modular connector system, 10-pin socket module, 250V/10A, crimp connection, turned contacts / fiber optic POF

Property	Value
Number of poles:	10
Rated current In:	10.00 A
Rated impulse voltage:	4.00 kV
With protective conductor:	no
Rated voltage:	250.00 V
Ambient temperature:	-40 to 120 °C
Contact design:	Socket
Pollution level:	3
QS single-wire:	2.5 to 0.14 mm²
Contact insert without contacts:	yes
Material of the contact coating:	Silver
Connection type:	Crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL94:	V0
Operating temperature:	-40 to 120 °C
