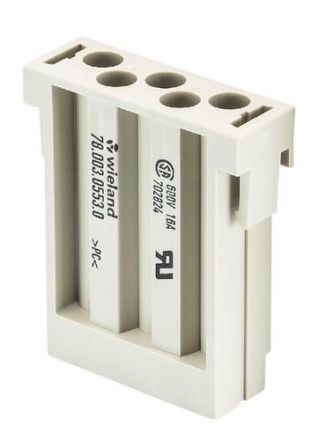

Wieland 78.003.0553.0 FLE BUC 5 25 module insert

Wieland 78.003.0553.0 FLE BUC 5 25 module insert

In stock

SKU: 673468

Price on request

€2.07

€0

Into a basketIn the basketGo

Overview

Modular connector system, 5-pin socket module, 250V/20A, crimp connection, turned contacts,

Property	Value
Number of poles:	5
Rated current In:	20.00 A
Rated impulse voltage:	6.00 kV
With protective conductor:	no
Rated voltage:	250.00 V
Ambient temperature:	-40 to 120 °C
Contact design:	Socket
Pollution level:	3
QS single-wire:	4 to 0.5 mm²
Contact insert without contacts:	yes
Material of the contact coating:	Silver
Connection type:	Crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL94:	V0
Operating temperature:	-40 to 120 °C
Width:	27.6 mm
Height:	40.4 mm
Depth:	34 mm

Characteristics

Rated surge voltage6.00 kV

HABFLE BUC 5 25

Manufacturer

HAN78.003.0553.0

GTIN4015573445932

Connection typeCrimp connection

Rated voltage250.00V

Rated current In20.00 A

Operating temperatur-40 to 120 °C

Width27.6 mm

Height40.4 mm

Number of poles5

Depth34 mm

Ambient temperature-40 to 120 °C

Degree of contamination3
