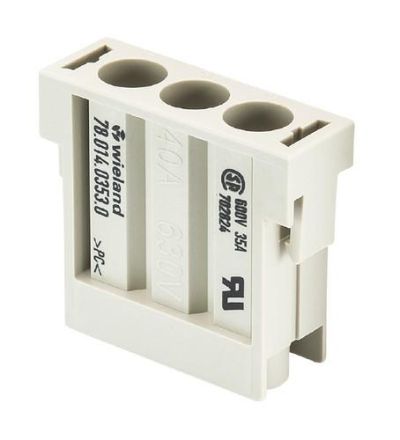

Wieland 78.014.0353.0 FLE STC 3 69 module insert

In stock
SKU: 673477
€1.53
Into a basketIn the basketGo

Overview

Modular connector system, 3-pole plug module, 630V/40A, crimp connection, turned contacts

Property Value
Number of poles: 3
Rated current In: 40.00 A
Rated impulse voltage: 8.00 kV
With protective conductor: no
Rated voltage: 630.00 V
Ambient temperature: -40 to 120 °C
Contact design: Pin
Pollution level: 3
QS single-wire: 10 to 1.5 mm²
Contact insert without contacts: yes
Material of the contact coating: Silver
Connection type: Crimp connection
With wire protection: no
Flammability class of the insulating material according to UL94: V0
Operating temperature: -40 to 120 °C
Width: 11.4 mm
Height: 31.4 mm
Depth: 34 mm

Characteristics

Rated surge voltage8.00 kV
HABFLE STC 3 69
ManufacturerWieland
HAN78.014.0353.0
GTIN4015573445970
Connection typeCrimp connection
Rated voltage630.00V
Rated current In40.00A
Operating temperatur-40 to 120 °C
Width11.4 mm
Height31.4 mm
Number of poles3
Depth34 mm
Ambient temperature-40 to 120 °C
Degree of contamination3
Wieland 78.014.0353.0 FLE STC 3 69 module insert
Wieland 78.014.0353.0 FLE STC 3 69 module insert
€1.53
Into a basketIn the basketGo
