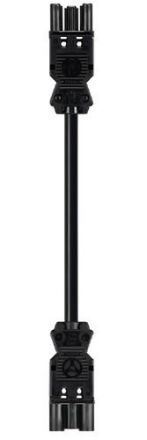

Wieland 92.232.1060.1 GST18I3K1BS 15H 10SW 1m pre-assembled cable

In stock

SKU: 674521

Price on request

€7.73

€0

Overview

GST18i3 connecting cable socket - plug, length 1.0 m, 3-pin, coding mains 250 V, 16 A, coding color black, strain relief color black, cable color black, conductor cross-section 1.5 mm, cable type H05Z1Z1-F, fire class: Eca

Property	Value
Length:	1.00 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	250.00 V
Conductor cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP20
Rated current:	16.00 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Connection cable
Degree of pollution:	2.00
Mechanical coding:	yes
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	tinned
Halogen-free:	yes
Fire load:	0.548 kWh
Number of poles:	3.00
Type of locking:	integrated in the connector
Cable diameter:	8 mm
Cable type:	H05Z1Z1-F
Fire behavior according to EN 13501-6: Class:	Eca
