Wieland 92.232.2003.1 GST18I3K1B- 15 20S Assembled cable

In stock

SKU: 668694

Price on request

€6.60

€0

Overview

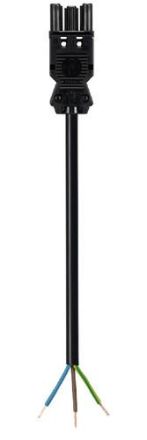

GST18i3 connection cable socket - free end, length 2.0 m, 3-pin, coding mains 250 V, 16 A, coding color black, strain relief color black, cable color black, conductor cross-section 1.5 mm, cable type H05VV-F, fire class: Eca

Property	Value
Length:	2.00 mm
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250.00 V
Stripping length:	9.00 mm
Conductor nominal cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP20
Rated current:	16.00 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	2.00
Conductor end treatment:	ultrasonic compacted wire ends
Mechanical coding:	yes
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	tinned
Halogen-free:	no
Fire load:	0.843 kWh
Stripping length:	37.00 mm
Number of poles:	3.00
Type of locking:	integrated in the connector
Cable diameter:	8.3 mm
Cable type:	H05VV-F
Fire behaviour according to EN 13501-6: Class:	Eca
