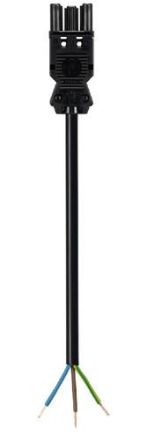

Wieland 92.238.9003.1 GST18I3K1B- 25 90SW Assembled cable

In stock

SKU: 668686

Price on request

€29.84

€0

Overview

GST18i3 connection cable, socket - free end, number of poles 3, rated voltage 250 V, rated current 20 A, cable type H05VV-F, fire class Eca, total length 9 m, conductor nominal cross-section 2.5 mm², coding color / contact insert black

Property	Value
Length:	9.00 mm
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250.00 V
Stripping length:	9.00 mm
Conductor nominal cross-section:	2.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP20
Rated current:	20.00 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	2.00
Conductor end treatment:	ultrasonic compacted wire ends
Mechanical coding:	yes
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	tinned
Halogen-free:	no
Fire load:	5.226 kWh
Stripping length:	37.00 mm
Number of poles:	3.00
Type of locking:	integrated in the connector
Cable diameter:	10.2 mm
Cable type:	H05VV-F
Fire behaviour according to EN 13501-6: Class:	Eca
