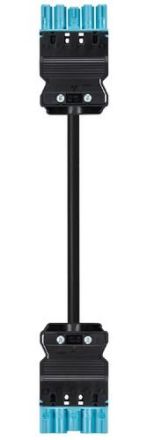

Wieland 92.257.2060.9 GST18I5KSBS 15H 20PB02 Assembled cable

In stock

SKU: 668815

Price on request

€21.19

€0

Overview

GST18i5 connecting cable socket - plug, length 2.0 m, 5-pin, coding mains 250 V + not SELV, 16 A, coding color pastel blue, strain relief color black, cable color black, conductor cross-section 1.5 mm, cable type H05Z1Z1-F, fire class: Eca

Property	Value
Length:	2.00 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	400.00 V
Nominal conductor cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP20
Rated current:	16.00 A
Color of coding/contact insert:	blue
Type of assembled Cable:	Connection cable
Degree of pollution:	2.00
Mechanical coding:	yes
Pole marking:	L, N, PE, D1, D2
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	tinned
Halogen-free:	yes
Fire load:	1.357 kWh
Number of poles:	5.00
Type of locking:	integrated in the connector
Cable diameter:	10.1 mm
Cable type:	H05Z1Z1-F
Fire behavior according to EN 13501-6: Class:	Eca
