Wieland 92.258.6003.1 GST18I5KSB- 25 60SW Assembled cable

In stock

SKU: 670857

Price on request

€31.02

€0

Overview

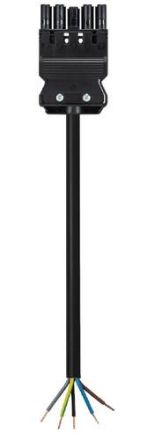

GST18i5 connection cable socket - free end, length 6.0 m, 5-pin, coding mains 250 V /400 V, 20 A, coding color black, strain relief color black, cable color black, conductor cross-section 2.5 mm, cable type H05VV-F, fire class: Eca

Property	Value
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	2.5 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP20
Rated current:	20 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	2
Conductor end treatment:	ultrasonic compacted wire ends
Mechanical coding:	yes
Pole marking:	3, N, PE, 2, 1
Conductor permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	tinned
Halogen-free:	no
Fire load:	5,016 kWh
Sheath strip length:	35 mm
Number of poles:	5
Locking type:	integrated in the connector
Cable diameter:	12.1 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
Item version:	6 m
