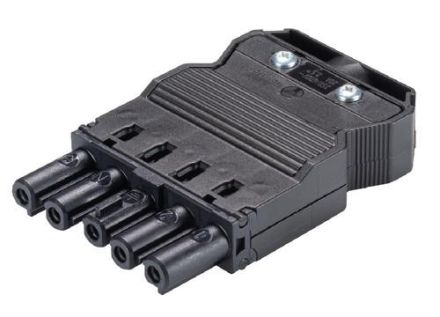

Wieland 92.953.4053.1 GST18I5SB1ZR1 socket part

In stock

SKU: 668505

Price on request

€5.30

€0

Overview

GST18i5 connector, 5-pin, socket with screw connection, coding mains 250 V/ 400 V, 20 A, coding color black, strain relief color black

Property	Value
Design:	Socket
Connection type:	Screw connection
Number of connections per pole:	1
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Fire load:	0.156 kWh
Width:	47.75 mm
Color of coding/contact insert:	black
Halogen-free:	yes
Height:	15 mm
Contact material:	CuZn
Length:	76.4 mm
Mechanical coding:	yes
Surface treatment of contacts:	silver-plated
Pole marking:	3, N, PE, 2, 1
Number of poles:	5
Protection class (IP):	IP20
Degree of pollution:	2
Material of the housing:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (single-wire):	0.75 to 2.5 mm²
Connection cross-section (fine-wire):	0.75 to 2.5 mm²
Type of locking:	integrated in the connector
Cable diameter:	7 to 13.5 mm
Max. continuous temperature resistance of contact part:	100 °C
