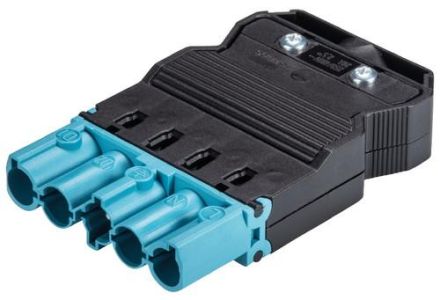

Wieland 92.954.4453.0 GST18I5S S1 ZR1 S PB02 plug part

In stock

SKU: 674512

Price on request

€5.13

€0

Overview

GST18i5 connector, 5-pin, plug with screw connection, coding mains 250 V + not SELV, 20 A, coding color pastel blue, strain relief color black

Property	Value
Design:	Plug
Connection type:	Screw connection
Number of connections per pole:	1.00
Rated voltage:	250.00 V
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Fire load:	0.157 kWh
Width:	47.75 mm
Color of coding/contact insert:	blue
Halogen-free:	yes
Height:	15.00 mm
Contact material:	CuZn
Length:	76.40 mm
Mechanical coding:	yes
Surface treatment of contacts:	tinned
Pole marking:	L, N, PE, D1, D2
Number of poles:	5.00
Protection class (IP):	IP20
Degree of pollution:	2.00
Material of the housing:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (single-wire):	0.75 to 2.5 mm²
Connection cross-section (fine-wire):	0.75 to 2.5 mm²
Type of locking:	integrated in the connector
Cable diameter:	7 to 13.5 mm
Max. continuous temperature resistance of contact part:	100 °C
