Wieland 96.020.0151.4 RST20I2V 3P1 FVL BR01 distributor

In stock

SKU: 670798

Price on request

€16.04

€0

Overview

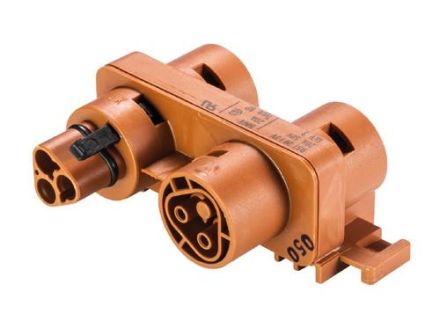

Distribution block RST20i2, 2-pole, 1 input, 3 outputs, with fastening option, 50V/20A, coding color brown

Property	Value
Contact material:	CuZn
Inputs:	1.00
Outputs:	3.00
Fire load:	0.224 kWh
Protection class (IP):	IP66
Length:	55.50 mm
Height:	31.30 mm
Width:	85.80 mm
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Number of poles:	2.00
Color of coding/contact insert:	brown
Type of distributor:	Distribution block
Rated voltage:	50.00 V
Housing material:	Polyamide (PA)
Pole marking:	1, 2
Halogen-free:	yes
Surface treatment of contacts:	silver-plated
Mechanical coding:	yes
Degree of pollution:	3.00
Type of locking:	integrated in the connector
Max. continuous temperature resistance of contact part:	100 °C
