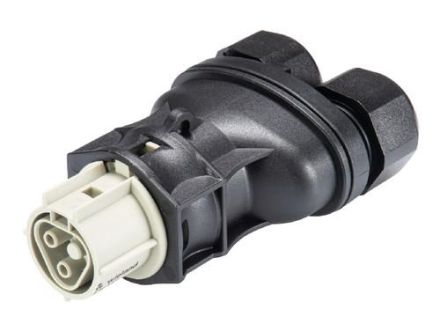

Wieland 96.021.4250.8 RST20I2S B13ZRXS L KG06 socket part

In stock

SKU: 668902

Price on request

€14.49

€0

Overview

Connector double connection, RST20i2, 2-pin, double connection, socket part in screw technology, 50V/20A, for cable diameter 6 -10 mm, coding color pebble gray, housing color black

Property	Value
Version:	Socket
Connection type:	Screw connection
Number of connections per pole:	1.00
Rated voltage:	24.00 V
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Fire load:	0.517 kWh
Width:	59.00 mm
Color of coding/contact insert:	gray
Halogen-free:	yes
Height:	38.00 mm
Contact material:	CuZn
Length:	96.00 mm
Mechanical coding:	yes
Surface treatment of contacts:	silver-plated
Pole marking:	1+, 2-
Number of poles:	2.00
Protection class (IP):	IP66
Degree of pollution:	3.00
Material of the housing:	Polyamide (PA)
With Strain relief:	yes
Connection cross-section (single-wire):	0.75 to 6 mm²
Connection cross-section (fine-stranded):	0.75 to 6 mm²
Type of locking:	integrated in the connector
Cable diameter:	6 to 10 mm
Max. continuous temperature resistance of contact part:	100 °C
