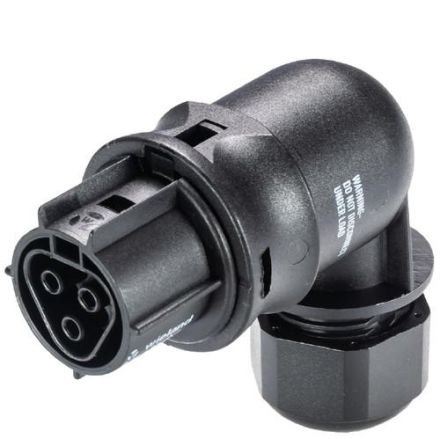

Wieland 96.033.4153.1 RST20I3S B1 YR2 SW socket part

In stock

SKU: 669019

Price on request

€8.28

€0

Overview

RST 20i3/2 connector (90° angled), 3-pin, socket part in screw technology, application 250V, 20A, for cable diameter 10-14mm, coding color black, housing color black

Property	Value
Design:	Socket
Connection type:	Screw connection
Number of connections per pole:	1.00
Rated voltage:	250.00 V
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Fire load:	0.324 kWh
Width:	34.60 mm
Color of coding/contact insert:	black
Halogen-free:	yes
Height:	62.30 mm
Contact material:	CuZn
Length:	73.40 mm
Mechanical coding:	yes
Surface treatment of contacts:	silver-plated
Pole marking:	L, N, PE
Number of poles:	3.00
Protection class (IP):	IP66
Degree of pollution:	3.00
Housing material:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (single-wire):	0.75 to 6 mm²
Connection cross-section (fine-stranded):	0.75 to 6 mm²
Type of locking:	integrated in the connector
Cable diameter:	10 to 14 mm
Max. continuous temperature resistance of contact part:	100 °C
