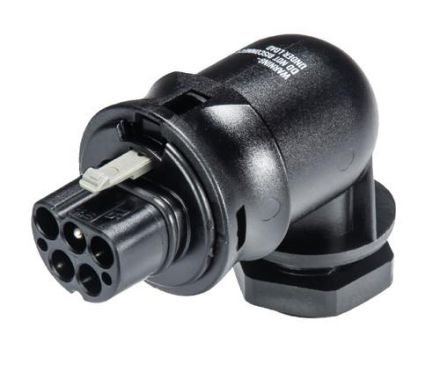

Wieland 96.044.6053.1 RST20I4S S1 M90V SW plug part

In stock

SKU: 670682

Price on request

€10.30

€0

Overview

Device connection, modular M20, RST20i4, 4-pin, right-angled, plug part in screw technology, 250/400V, 20A, coding color black, housing color black

Property	Value
Connection type:	Screw connection
Number of connections per pole:	1.00
Design:	Plug
Rated voltage:	400.00 V
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Fire load:	0.236 kWh
Width:	54.30 mm
Installation variant:	Snap-in/screw-in part
Color of the coding/contact insert:	black
Color of the separate adapter piece:	black
Thread connection dimension:	M20
Halogen-free:	yes
Height:	35.00 mm
Contact material:	CuZn
Length:	71.50 mm
Mechanical coding:	yes
Inclination angle:	90 °
Surface treatment of contacts:	silver-plated
Pole marking:	1, 2, 3, PE
Number of poles:	4.00
Protection class (IP):	IP66
Plug direction:	right-angled
Pollution level:	3.00
Material of the housing:	Polyamide (PA)
Connection cross-section (single-wire):	0.75 to 4 mm²
Connection cross-section (fine-wire):	0.75 to 4 mm²
Type of Locking:	integrated in the connector
Max. continuous temperature resistance of contact part:	100 °C
