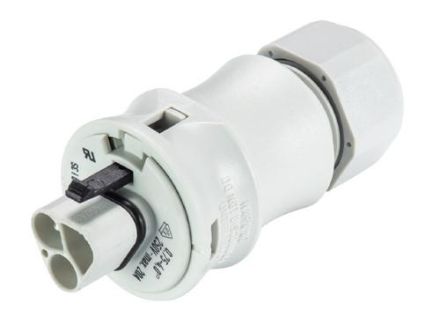

Wieland 96.132.0153.0 RST20I3C S1 ZR2 V GL plug part

In stock

SKU: 670742

Price on request

€5.45

€0

Overview

RST 20i3/2 connector, 3-pin, plug part for crimp contact, application 250V, 20A, for cable diameter 10-14mm, coding color light gray, housing color light gray

Property	Value
Design:	Plug
Connection type:	Crimp
Number of connections per pole:	1
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Fire load:	0.268 kWh
Width:	34.6 mm
Color of coding/contact insert:	gray
Halogen-free:	yes
Height:	34.6 mm
Contact material:	CuZn
Length:	79.1 mm
Surface treatment of contacts:	silver-plated
Pole marking:	L, N, PE
Number of poles:	3
Protection class (IP):	IP66
Degree of pollution:	3
Housing material:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (fine-stranded):	0.75 to 4 mm²
Locking type:	integrated in the connector
Cable diameter:	10 to 14 mm
Max. continuous temperature resistance of contact part:	100 °C
