Wieland 96.141.2053.0 RST20I4C B1 M00 GL socket part

In stock

SKU: 669128

Price on request

€8.28

€0

Overview

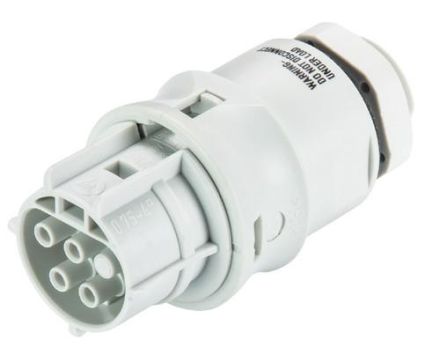

Device connection, modular M20, RST20i4, 4-pin, straight, socket part in crimp technology, 250/400V, 20A, coding color light gray, housing color light gray

Property	Value
Connection type:	Crimp
Number of connections per pole:	1.00
Design:	Socket
Rated voltage:	400.00 V
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Fire load:	0.202 kWh
Width:	35.00 mm
Installation variant:	Snap-in/screw-in part
Color of the coding/contact insert:	gray
Color of the separate adapter piece:	gray
Thread connection dimension:	M20
Halogen-free:	yes
Height:	35.00 mm
Contact material:	CuZn
Length:	71.00 mm
Mechanical coding:	yes
Surface treatment of contacts:	silver-plated
Pole marking:	1, 2, 3, PE
Number of poles:	4.00
Protection class (IP):	IP66
Plug direction:	straight
Pollution level:	3.00
Housing material:	Polyamide (PA)
Connection cross-section (fine-stranded):	0.75 to 4 mm²
Type of locking:	integrated in the connector
Max. continuous temperature resistance of contact part:	100 °C
