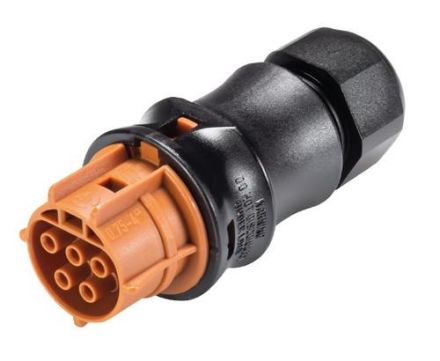

Wieland 96.151.0051.4 RST20I5C B1 ZR1S L BR01 socket part

In stock

SKU: 669134

Price on request

€8.48

€0

Overview

RST 20i5/4 connector, 5-pin, socket for crimp contact, application ~50V/-120V, 20A, for cable diameter 6-10mm, coding color signal brown, housing color black

Property	Value
Version:	Socket
Connection type:	Crimp
Number of connections per pole:	1.00
Rated voltage:	50.00 V
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Fire load:	0.283 kWh
Width:	34.60 mm
Color of coding/contact insert:	brown
Halogen-free:	yes
Height:	34.60 mm
Contact material:	CuZn
Length:	80.40 mm
Mechanical coding:	yes
Surface treatment of contacts:	silver-plated
Pole marking:	1, 2, 3, 4, 5
Number of poles:	5.00
Protection class (IP):	IP66
Degree of pollution:	3.00
Housing material:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (fine-stranded):	0.75 to 4 mm²
Type of locking:	integrated in the connector
Cable diameter:	6 to 10 mm
Max. continuous temperature resistance of contact part:	100 °C
