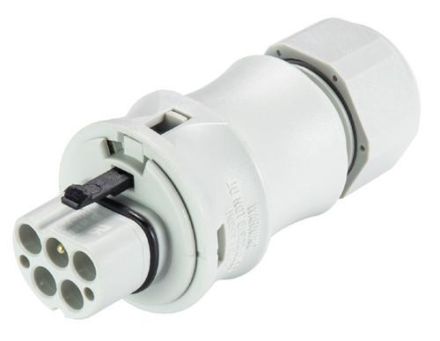

Wieland 96.152.0053.0 RST20I5C S1 ZR1 V GL plug part

In stock
SKU: 670758
€9.89
Into a basketIn the basketGo

Overview

Connector RST20i5, 5-pin, plug part in crimp technology, 250/400V, 20A, for cable diameter 6-10 mm, coding color light gray, housing color light gray, without contacts!

Property Value
Version: Plug
Connection type: Crimp
Number of connections per pole: 1.00
Rated voltage: 400.00 V
Rated impulse voltage: 4.00 kV
Rated current: 20.00 A
Fire load: 0.279 kWh
Width: 34.60 mm
Color of coding/contact insert: gray
Halogen-free: yes
Height: 34.60 mm
Contact material: CuZn
Length: 80.40 mm
Mechanical coding: yes
Surface treatment of contacts: silver-plated
Pole marking: 3, N, PE, 2, 1
Number of poles: 5.00
Protection class (IP): IP66
Pollution level: 3.00
Material of the housing: Polyamide (PA)
With Strain relief: yes
Connection cross-section (fine-stranded): 0.75 to 4 mm²
Type of locking: integrated in the connector
Cable diameter: 6 to 10 mm
Max. continuous temperature resistance of contact part: 100 °C

Characteristics

Cable diameter6 to 10 mm
Rated surge voltage4.00 kV
HABRST20I5C S1 ZR1 V GL
ManufacturerWieland
HAN96.152.0053.0
GTIN4015573932852
Connection typeCrimp
VersionPlug
Rated voltage400.00V
Rated current20.00 A
Width34.60 mm
Halogen freeYes
Height34.60 mm
Length80.40 mm
With strain reliefYes
Number of poles5.00
IP protection)IP66
Degree of contamination3.00
Housing materialPolyamide (PA)
