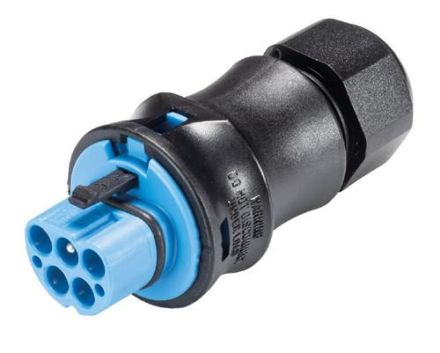

Wieland 96.152.0053.9 RST20I5C S1 ZR1SV BL07 plug part

In stock

SKU: 670761

Price on request

€9.89

€0

Overview

Connector RST20i5, 5-pin, plug part in crimp technology, 250/400V, 20A, for cable diameter 6-10 mm, coding color blue, housing color black

Property	Value
Design:	Plug
Connection type:	Crimp
Number of connections per pole:	1
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Fire load:	0.28 kWh
Width:	34.6 mm
Color of coding/contact insert:	blue
Halogen-free:	yes
Height:	34.6 mm
Contact material:	CuZn
Length:	78.4 mm
Surface treatment of contacts:	silver-plated
Pole marking:	1, 2, 3, 4, 5
Number of poles:	5
Protection class (IP):	IP66
Degree of pollution:	3
Material of the housing:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (fine-stranded):	0.75 to 4 mm²
Locking type:	integrated in the connector
Cable diameter:	6 to 10 mm
Max. continuous temperature resistance of contact part:	100 °C
