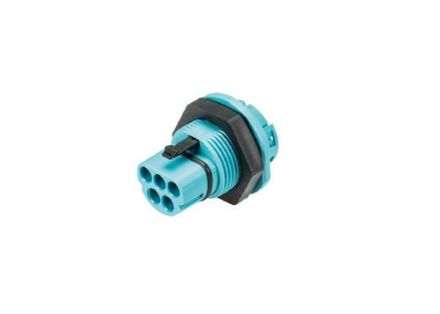

Wieland 96.152.1053.6 RST20I5C S1 M01VA TB04 plug part

In stock

SKU: 670775

Price on request

€6.76

€0

Overview

RST 20i5/4 device connection M25, 5-pin, plug part for crimp contact, application 250V, 20A, coding color turquoise blue

Property	Value
Connection type:	Crimp
Number of connections per pole:	1.00
Design:	Plug
Rated voltage:	250.00 V
Rated impulse voltage:	4.00 kV
Rated current:	20.00 A
Fire load:	0.124 kWh
Width:	35.00 mm
Installation variant:	Snap-in/screw-in part
Color of coding/contact insert:	blue
Thread connection dimension:	M25
Halogen-free:	yes
Height:	35.00 mm
Contact material:	CuZn
Length:	42.00 mm
Mechanical coding:	yes
Surface treatment of contacts:	silver-plated
Pole marking:	L, N, PE, -, +
Number of poles:	5.00
Protection class (IP):	IP66
Plug direction:	straight
Degree of pollution:	3.00
Material of the housing:	Polyamide (PA)
Connection cross-section (fine-stranded):	0.75 to 4 mm²
Type of locking:	integrated in the connector
Max. continuous temperature resistance of the contact part:	100 °C
