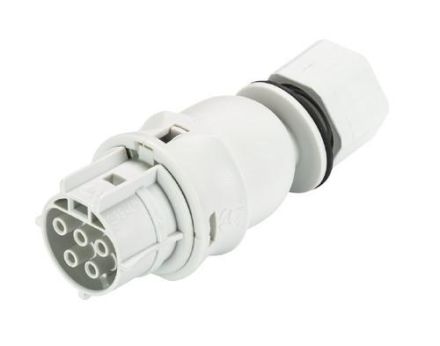

Wieland 96.155.2153.0 RST20I5C B1 M13 GL socket adapter

In stock

SKU: 668857

Price on request

€10.01

€0

Overview

RST 20i5/4 device connection (7° angled) M16, 5-pin, socket part for crimp contact, modular, application 250V/400V, 20A, coding color light gray, housing color light gray

Property	Value
Connection type:	Crimp
Number of connections per pole:	1
Design:	Socket
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Fire load:	0.223 kWh
Width:	34.6 mm
Color of the coding/contact insert:	gray
Color of the separate adapter piece:	gray
Thread connection dimension:	M16
Halogen-free:	yes
Height:	34.6 mm
Contact material:	CuZn
Length:	84 mm
Inclination angle:	7 °
Surface treatment of contacts:	silver-plated
Pole marking:	3, N, PE, 2, 1
Number of poles:	5
Protection class (IP):	IP66
Plug direction:	angled
Degree of pollution:	3
Material of the housing:	Polyamide (PA)
Connection cross-section (fine-stranded):	0.75 to 4 mm²
Type of locking:	integrated in the connector
