Wieland 96.222.0538.4 RST20I2K1-S315 L 05BR01 Assembled cable

In stock

SKU: 669174

Price on request

€9.21

€0

Overview

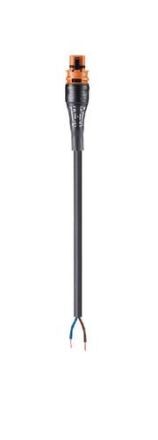

Connection cable plug - open end, length 0.5m, RST20i2, 2-pole, 50V/16A, cable H07RN-F, cross-section 1.5 mm, coding color brown

Property	Value
Version side 1:	free cable end
Version side 2:	plug
Sheath color:	black
Rated voltage:	50 V
Stripping length:	9 mm
Nominal conductor cross-section:	1.5 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP66
Rated current:	16 A
Color of coding/contact insert:	other
Type of pre-assembled cable:	Device connection cable
Degree of pollution:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Pole marking:	1, 2
Cable permanently temperature-resistant up to:	60 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	0.392 kWh
Strip length:	35 mm
Number of poles:	2
Locking type:	integrated in the connector
Cable diameter:	8.5 to 9.7 mm
Cable type:	H07RN-F
