Wieland 96.222.2002.4 RST20I2K1BS315PL 20BR01 Assembled cable

In stock

SKU: 669205

Price on request

€14.96

€0

Overview

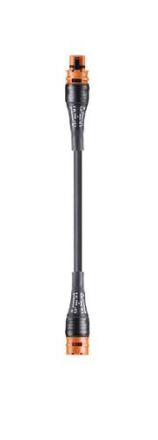

Extension cable socket - plug, length 2m, RST20i2, 2-pole, 50V/16A, cable H05VV, cross-section 1.5 mm, coding color brown

Property	Value
Length:	2.00 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	50.00 V
Nominal conductor cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	16.00 A
Color of coding/contact insert:	brown
Type of pre-assembled cable:	Connection cable
Degree of pollution:	3.00
Mechanical coding:	yes
Pole marking:	1, 2
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	0.785 kWh
Number of poles:	2.00
Type of locking:	integrated in the connector
Cable diameter:	7.3 to 7.7 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
