Wieland 96.222.3000.1 RST20I2K1BS315P 30SW Assembled cable

In stock

SKU: 669227

Price on request

€16.40

€0

Overview

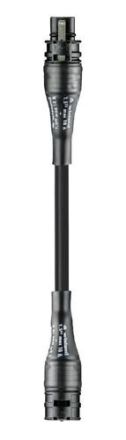

Extension cable socket - plug, length 3m, RST20i2, 2-pole, 250V, 16A, cable H05VV, cross-section 1.5mm, coding color black

Property	Value
Length:	3.00 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	250.00 V
Nominal conductor cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	16.00 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Connection cable
Degree of pollution:	3.00
Mechanical coding:	yes
Pole marking:	L, N
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	1,087 kWh
Number of poles:	2.00
Type of locking:	integrated in the connector
Cable diameter:	7.3 to 7.7 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
