Wieland 96.222.3097.4 RST20I2K1B-315OL 30BR01 Assembled cable

In stock

SKU: 669244

Price on request

€15.65

€0

Overview

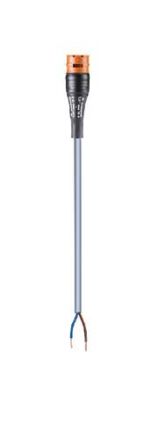

Connection cable socket - open end, length 3m, RST20i2, 2-pole, 50V/16A, cable Ölflex classic 100, cross-section 1.5 mm, coding color brown

Property	Value
Length:	3.00 mm
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	gray
Rated voltage:	50.00 V
Stripping length:	9.00 mm
Nominal conductor cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	16.00 A
Color of coding/contact insert:	brown
Type of assembled Cable:	Device connection cable
Degree of contamination:	3.00
Conductor end treatment:	ultrasonic compacted wire ends
Mechanical coding:	yes
Pole marking:	1, 2
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Stripping length:	35.00 mm
Number of poles:	2.00
Type of locking:	integrated in the connector
Cable diameter:	6 to 6.6 mm
Cable type:	Ölflex classic 100
