Wieland 96.222.4004.0 RST20I2K1-S 15P 40GL Assembled cable

In stock

SKU: 669250

Price on request

€15.96

€0

Overview

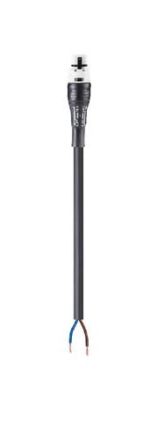

Connection cable plug - open end, length 4m, RST20i2, 2-pole, 250V, 16A, cable H05VV, cross-section 1.5mm, coding color light gray

Property	Value
Version side 1:	free cable end
Version side 2:	Plug
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	1.5 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP66
Rated current:	16 A
Color of coding/contact insert:	gray
Type of pre-assembled cable:	Device connection cable
Degree of pollution:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Pole marking:	L, N
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	1,313 kWh
Strip length:	35 mm
Number of poles:	2
Locking type:	integrated in the connector
Cable diameter:	7.3 to 7.7 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
