Wieland 96.222.5003.1 RST20I2K1B- 15P 50SW Assembled cable

In stock

SKU: 669266

Price on request

€15.64

€0

Overview

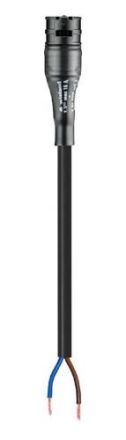

Connection cable socket - open end, length 5m, RST20i2, 2-pole, 250V, 16A, cable H05VV, cross-section 1.5mm, coding color black

Property	Value
Length:	5.00 mm
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250.00 V
Stripping length:	9.00 mm
Nominal conductor cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	16.00 A
Color of coding/contact insert:	black
Type of assembled Cable:	Device connection cable
Degree of contamination:	3.00
Conductor end treatment:	ultrasonic compacted wire ends
Mechanical coding:	yes
Pole marking:	L, N
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	1.615 kWh
Stripping length:	35.00 mm
Number of poles:	2.00
Type of locking:	integrated in the connector
Cable diameter:	7.3 to 7.7 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
