Wieland 96.230.7504.1 RST20I3K1-S 75P 75SW Assembled cable

In stock

SKU: 669367

Price on request

€20.77

€0

Overview

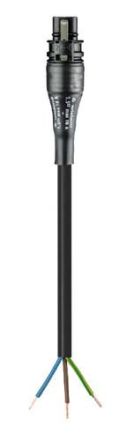

Connection cable plug - open end, length 7.5m, RST20i3, 3-pin, 250V, 16A, cable H05VV, cross-section 0.75mm, coding color black

Property	Value
Version side 1:	free cable end
Version side 2:	plug
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	0.75 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP66
Rated current:	6 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Device connection cable
Degree of pollution:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	1,832 kWh
Strip length:	35 mm
Number of poles:	3
Type of locking:	integrated in the connector
Cable diameter:	6.5 to 6.9 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
