Wieland 96.232.0533.1 RST20I3K1B- 15 05SW Assembled cable

In stock

SKU: 669391

Price on request

€9.25

€0

Overview

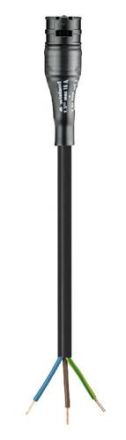

Connection cable socket - open end, length 0.5m, RST20i3, 3-pole, 250V, 16A, cable H07RN-F, cross-section 1.5mm, coding color black

Property	Value
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	1.5 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP66
Rated current:	16 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Device connection cable
Degree of pollution:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	60 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	0.397 kWh
Strip length:	35 mm
Number of poles:	3
Locking type:	integrated in the connector
Cable diameter:	9.6 to 10 mm
Cable type:	H07RN-F
