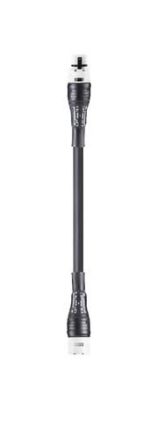

Wieland 96.232.2030.0 RST20I3K1BS 15 20GL Assembled cable

In stock
SKU: 669454
€19.40
Into a basketIn the basketGo

Overview

Extension cable socket - plug, length 2m, RST20i3, 3-pin, 250V, 16A, cable H07RN-F, cross-section 1.5mm, coding color light gray

Property Value
Version side 1: Socket
Version side 2: Plug
Sheath color: black
Rated voltage: 250 V
Nominal conductor cross-section: 2.5 mm²
Rated impulse voltage: 4 kV
Protection class (IP): IP66
Rated current: 20 A
Color of coding/contact insert: gray
Type of pre-assembled cable: Connection cable
Degree of pollution: 3
Pole marking: L, N, PE
Cable permanently temperature-resistant up to: 60 °C
Insulating part permanently temperature-resistant up to: 100 °C
Surface treatment of contacts: silver-plated
Halogen-free: no
Fire load: 1,423 kWh
Number of poles: 3
Type of locking: integrated in the connector
Cable diameter: 9.6 to 10 mm
Cable type: H07RN-F

Characteristics

Nominal conductor cross-section2.5 mm²
Cable diameter9.6 to 10mm
Cable typeH07RN-F
Rated surge voltage4 kV
HABRST20I3K1BS 15 20GL
ManufacturerWieland
HAN96.232.2030.0
GTIN4015573761551
Rated voltage250V
Rated current20A
Halogen freeNo
Coat colorBlack
Number of poles3
IP protection)IP66
Degree of contamination3
