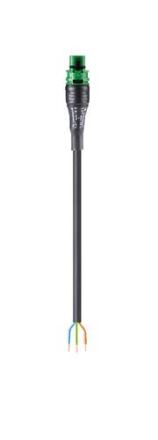

Wieland 96.232.3036.7 RST20I3K1-S 15 H 30GN02 Assembled cable

In stock

SKU: 669493

Price on request

€19.49

€0

Overview

Connection cable plug - open end, length 3m, RST20i3, 3-pole, 250/400V, 16A, cable H07RN-F, cross-section 1.5mm, coding color green

Property	Value
Length:	3.00 mm
Version side 1:	free cable end
Version side 2:	Plug
Sheath color:	black
Rated voltage:	400.00 V
Stripping length:	9.00 mm
Conductor nominal cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	16.00 A
Color of coding/contact insert:	green
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	3.00
Conductor end treatment:	ultrasonic compacted wire ends
Mechanical coding:	yes
Pole marking:	1, 2, PE
Cable permanently temperature-resistant up to:	60.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	1.963 kWh
Strip length:	35.00 mm
Number of poles:	3.00
Type of locking:	integrated in the connector
Cable diameter:	9.6 to 10 mm
Cable type:	H07RN-F
