Wieland 96.232.3064.0 RST20I3K1-S 15H 30GL Assembled cable

In stock

SKU: 669504

Price on request

€14.52

€0

Overview

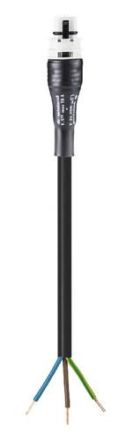

Circular connector assembled with halogen-free hose cable S05 Z1Z1-F3G1.5, plug on one side / free end on the other, cable cross-section: 1.5 qmm, color: connector gray, cable black, system: RST 20/3K1 -/S 15H 30GL, total length: 3 m

Property	Value
Version side 1:	free cable end
Version side 2:	plug
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	1.5 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP66
Rated current:	16 A
Color of coding/contact insert:	gray
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	3
Conductor end treatment:	ultrasonic-compressed wire ends
Pole marking:	L, N, PE
Conductor permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	yes
Fire load:	1,214 kWh
Strip length:	35 mm
Number of poles:	3
Locking type:	integrated in the connector
Cable diameter:	7.8 to 8.2 mm
Cable type:	H05Z1Z1-F
Fire behavior according to EN 13501-6: Class:	Eca
