Wieland 96.232.4034.0 RST20I3K1-S 15 40GL Assembled cable

In stock
SKU: 669522
€21.37
Into a basketIn the basketGo

Overview

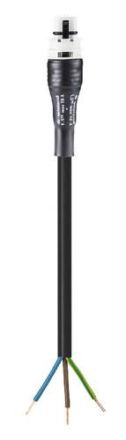

RST 20i3/2 connection cable plug - free end, 3-pin, assembled with shrink tubing, application 250V, 16A, cable type H07RN-F, length 4.0m, conductor cross-section 1.5mm, coding color light gray

Property Value
Version side 1: free cable end
Version side 2: plug
Sheath color: black
Rated voltage: 250 V
Stripping length: 9 mm
Nominal conductor cross-section: 1.5 mm²
Rated impulse voltage: 4 kV
Protection class (IP): IP66
Rated current: 16 A
Color of coding/contact insert: gray
Type of pre-assembled cable: Device connection cable
Degree of contamination: 3
Conductor end treatment: ultrasonic compacted wire ends
Pole marking: L, N, PE
Cable permanently temperature-resistant up to: 60 °C
Insulating part permanently temperature-resistant up to: 100 °C
Surface treatment of contacts: silver-plated
Halogen-free: no
Fire load: 2,589 kWh
Sheath stripping length: 35 mm
Number of poles: 3
Locking type: integrated in the connector
Cable diameter: 9.6 to 10 mm
Cable type: H07RN-F

Characteristics

Nominal conductor cross-section1.5 mm²
Cable diameter9.6 to 10mm
Cable typeH07RN-F
Rated surge voltage4 kV
HABRST20I3K1-S 15 40GL
ManufacturerWieland
HAN96.232.4034.0
GTIN4015573761964
Rated voltage250V
Rated current16A
Halogen freeNo
Coat colorBlack
Number of poles3
IP protection)IP66
Degree of contamination3
