Wieland 96.232.7000.1 RST20I3K1BS 15P 70SW Assembled cable

In stock

SKU: 669600

Price on request

€21.06

€0

Overview

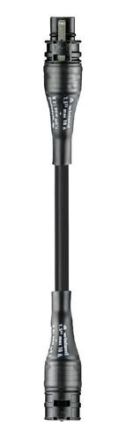

RST 20i3/2 extension cable socket - plug, 3-pin, assembled with shrink tubing, application 250V, 16A, cable type H05VV-F, length 7.0m, conductor cross-section 1.5mm, coding color black

Property	Value
Length:	7.00 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	250.00 V
Conductor nominal cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	16.00 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Connection cable
Degree of pollution:	3.00
Mechanical coding:	yes
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	2.814 kWh
Number of poles:	3.00
Type of locking:	integrated in the connector
Cable diameter:	8.15 to 8.45 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
