Wieland 96.233.1031.7 RST20I3K1BS 25 H 10GN02 Assembled cable

In stock

SKU: 669706

Price on request

€15.67

€0

Overview

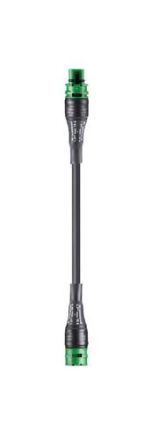

Extension cable socket - plug, length 1m, RST20i3, 3-pin, 250/400V/20A, cable H07RN-F, cross-section 2.5 mm, coding color green

Property	Value
Length:	1.00 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	400.00 V
Nominal conductor cross-section:	2.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	20.00 A
Color of coding/contact insert:	green
Type of pre-assembled cable:	Connection cable
Degree of pollution:	3.00
Mechanical coding:	yes
Pole marking:	1, 2, PE
Cable permanently temperature-resistant up to:	60.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Number of poles:	3.00
Locking type:	integrated in the connector
Cable diameter:	11.3 to 11.9 mm
Cable type:	H07RN-F
