Wieland 96.233.2001.7 RST20I3K1BS 25PH 20GN02 Assembled cable

In stock

SKU: 669727

Price on request

€15.79

€0

Overview

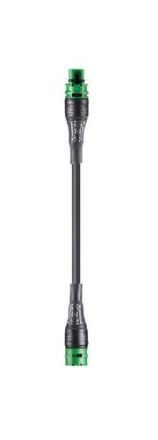

Extension cable socket - plug, length 2m, RST20i3, 3-pin, 250/400V/20A, cable H05VV, cross-section 2.5 mm, coding color green

Property	Value
Length:	2.00 mm
Version side 1:	Socket
Version side 2:	Plug
Sheath color:	black
Rated voltage:	400.00 V
Nominal conductor cross-section:	2.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	20.00 A
Color of coding/contact insert:	green
Type of pre-assembled cable:	connecting cable
Degree of contamination:	3.00
Mechanical coding:	yes
Pole marking:	1, 2, PE
Cable permanently temperature-resistant up to:	70.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	1.316 kWh
Number of poles:	3.00
Type of locking:	integrated in the connector
Cable diameter:	9.7 to 10.1 mm
Cable type:	H05VV-F
Fire behavior according to EN 13501-6: Class:	Eca
