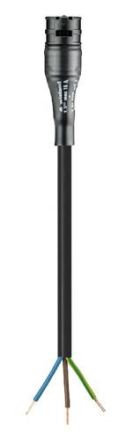

Wieland 96.233.5063.1 RST20I3K1B- 25H 50SW Assembled cable

In stock

SKU: 669793

Price on request

€31.14

€0

Overview

RST 20i3/2 connection cable socket - free end, 3-pin, assembled with shrink tubing, application 250V, 20A, cable type H05Z1Z1-F, length 5.0m, conductor cross-section 2.5mm, coding color black

Property	Value
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	2.5 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP66
Rated current:	20 A
Color of coding/contact insert:	black
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	3
Conductor end treatment:	ultrasonic compacted wire ends
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	yes
Fire load:	2,929 kWh
Sheath stripping length:	35 mm
Number of poles:	3
Locking type:	integrated in the connector
Cable diameter:	9.7 to 10.1 mm
Cable type:	H05Z1Z1-F
Fire behavior according to EN 13501-6: Class:	Eca
