Wieland 96.452.3034.6 RST20I5KS-S 15 30TB04 Assembled cable

In stock

SKU: 670064

Price on request

€31.14

€0

Overview

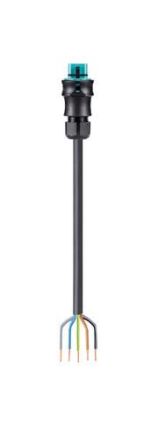

RST 20i5/4 connection cable plug - free end, 5-pin, assembled with screw technology, application 250V, 16A, cable type H07RN-F, length 3.0m, conductor cross-section 1.5mm, coding color turquoise blue

Property	Value
Length:	3.00 mm
Version side 1:	free cable end
Version side 2:	plug
Sheath color:	black
Rated voltage:	250.00 V
Stripping length:	9.00 mm
Conductor nominal cross-section:	1.50 mm²
Rated impulse voltage:	4.00 kV
Housing color:	black
Protection class (IP):	IP66
Rated current:	16.00 A
Color of coding/contact insert:	blue
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	3.00
Conductor end treatment:	ultrasonic compacted wire ends
Mechanical coding:	yes
Pole marking:	L, N, PE, D1, D2
Cable permanently temperature-resistant up to:	60.00 °C
Insulating part permanently temperature-resistant up to:	100.00 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Fire load:	3.647 kWh
Stripping length:	35.00 mm
Number of poles:	5.00
Type of locking:	integrated in the connector
Cable diameter:	12.1 to 12.3 mm
Cable type:	H07RN-F
