Wieland 96.454.8033.0 RST20I5KSB- 40 80GL Assembled cable

In stock

SKU: 670367

Price on request

€101.32

€0

Overview

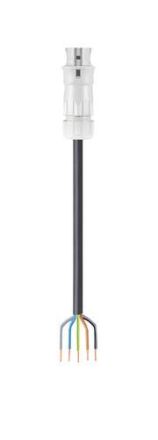

RST 20i5/4 connection cable socket - free end, 5-pin, assembled with screw technology, application 250V/400V, 20A, cable type H07RN-F, length 8.0m, conductor cross-section 4.0mm, coding color light gray

Property	Value
Version side 1:	Socket
Version side 2:	free cable end
Sheath color:	black
Rated voltage:	250 V
Stripping length:	9 mm
Nominal conductor cross-section:	4 mm²
Rated impulse voltage:	4 kV
Protection class (IP):	IP66
Rated current:	20 A
Color of coding/contact insert:	gray
Type of pre-assembled cable:	Device connection cable
Degree of contamination:	3
Conductor end treatment:	ultrasonic compacted wire ends
Pole marking:	3, N, PE, 2, 1
Cable permanently temperature-resistant up to:	60 °C
Insulating part permanently temperature-resistant up to:	100 °C
Surface treatment of contacts:	silver-plated
Halogen-free:	no
Strip length:	35 mm
Number of poles:	5
Locking type:	integrated in the connector
Cable diameter:	16 to 18 mm
Cable type:	H07RN-F
