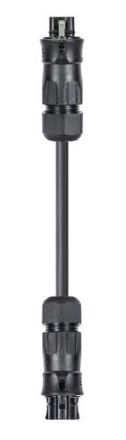

Wieland 96.454.9000.1 RST20I5KSBS 40P 90SW Assembled cable

In stock
SKU: 670370
€111.01
Into a basketIn the basketGo

Overview

Extension cable socket - plug, length 9 m, RST20i5, 5-pin, 250/400V, 20A, cable H05VV, cross-section 4.0 mm, coding color black

Property Value
Version side 1: Socket
Version side 2: Plug
Sheath color: black
Rated voltage: 250 V
Nominal conductor cross-section: 4 mm²
Rated impulse voltage: 4 kV
Protection class (IP): IP66
Rated current: 20 A
Color of coding/contact insert: black
Type of pre-assembled cable: Connection cable
Degree of pollution: 3
Pole marking: 3, N, PE, 2, 1
Cable permanently temperature-resistant up to: 70 °C
Insulating part permanently temperature-resistant up to: 100 °C
Surface treatment of contacts: silver-plated
Halogen-free: no
Fire load: 9,853 kWh
Number of poles: 5
Type of locking: integrated in the connector
Cable diameter: 13.9 to 14.7 mm
Cable type: H05VV-F

Characteristics

Nominal conductor cross-section4 mm²
Cable diameter13.9 to 14.7mm
Cable typeH05VV-F
Rated surge voltage4 kV
HABRST20I5KSBS 40P 90SW
ManufacturerWieland
HAN96.454.9000.1
GTIN4015573986923
Rated voltage250V
Rated current20A
Halogen freeNo
Coat colorBlack
Number of poles5
IP protection)IP66
Degree of contamination3
Wieland 96.454.9000.1 RST20I5KSBS 40P 90SW Assembled cable
