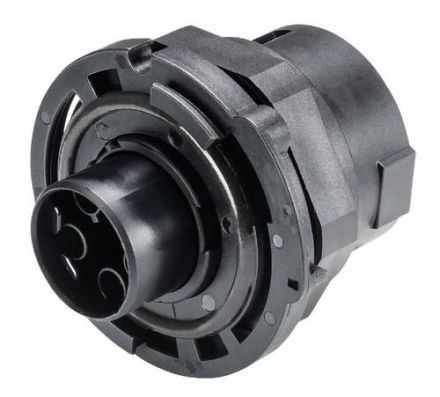

Wieland 97.041.5553.1 RST50i4S B1 ZM02V SW socket part

In stock

SKU: 668861

Price on request

€31.10

€0

Overview

RST 50i5/4 device connection, 4-pin, socket part in screw technology, application 250V/400V, 50A, for bore holes M32 or M40 with adapter ring, with anti-twist protection, coding color black, housing color black

Property	Value
Connection type:	Screw connection
Number of connections per pole:	1
Design:	Socket
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	50 A
Fire load:	0.424 kWh
Width:	65 mm
Color of coding/contact insert:	black
Thread connection size:	M32
Halogen-free:	yes
Height:	65 mm
Contact material:	CuZn
Length:	65.7 mm
Surface treatment of contacts:	silver-plated
Pole marking:	1, 2, 3, PE
Number of poles:	4
Protection class (IP):	IP66
Plug direction:	straight
Degree of pollution:	3
Housing material:	Polyamide (PA)
Connection cross-section (single-wire):	4 to 16 mm²
Connection cross-section (fine-wire):	4 to 16 mm²
Type of locking:	integrated in the connector
