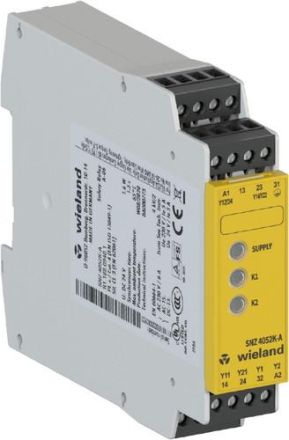

Wieland R1.188.0950.1 SNZ4052K-A 230V AC universal safety relay

In stock

SKU: 668605

Price on request

€112.21

€0

Overview

Basic device EN 574 Type IIIC, two-channel control, 2x normally closed/normally open start-up lock, cross-circuit detection, simultaneity monitoring, 2 releases, 1 detector, AC 230 V 50-60Hz, screw terminal pluggable

Property	Value
Number of outputs, signaling function, undelayed, contact-based:	1
Number of outputs, safety-related, undelayed, semiconductor:	2
Number of outputs, safety-related, undelayed, contact-based:	2
Version of the Switching function of the inputs:	other
Design of the electrical connection:	screw connection
Suitable for safety functions:	yes
With start input:	no
Rail mounting possible:	yes
Width:	22.5 mm
Height:	96.5 mm
With removable terminals:	yes
With Feedback loop:	yes
Type class for safety requirements according to EN 574:	Type III C
