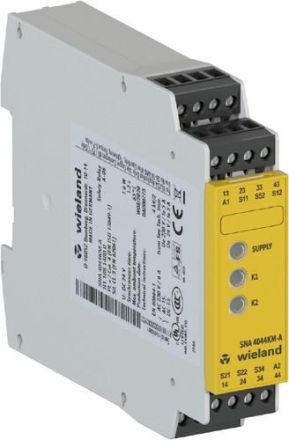

Wieland R1.188.1480.0 SNA4044KM-A AC/DC 24V 50-60HZ (A) monitoring relay

In stock
SKU: 674135
€129.02
Into a basketIn the basketGo

Overview

Basic device for lifts EN 81-20/50, burner EN 50156-1, light grid, one or two-channel control, automatic reset, without reset button monitoring, cross-circuit detection, 4 releases, AC/DC 24 V 50-60Hz, screw terminals pluggable

Property Value
Number of outputs, safety-related, undelayed, contact-based: 4
Suitable for monitoring position switches: yes
Suitable for monitoring proximity switches: yes
Evaluation of inputs: two-channel
Suitable for monitoring magnetic switches: no
With muting function: no
Mounting rail mounting possible: yes
Design: Basic device
Design of the electrical connection: Screw connection
Number of outputs, safety-related, undelayed, semiconductor: 4
Suitable for monitoring optoelectronic protective devices: yes
Suitable for monitoring emergency stop circuits: yes
Width: 22.5 mm
Height: 96.5 mm
With removable terminals: yes
With start input: yes
With feedback circuit: yes

Characteristics

HABSNA4044KM-A AC/DC 24V 50-60HZ (A)
ManufacturerWieland
HANR1.188.1480.0
GTIN4015573827196
VersionBasic device
Design of the electrical connectionScrew connection
Width22.5 mm
Height96.5 mm
With removable clampsYes
Mounting rail possibleYes
